M6 T Slot Nut Dimensions

T-Slot Nuts - Metric

• Black Oxide Finish
• Case Hardened
• 1018 Material
• The last thread is incomplete on T-Slot Nuts to prevent the stud from turning through the bottom of the nut.
• Standard package quantity:
41401-41419 - 25 pcs.
61401-61413 - 25 pcs.
Tapped through T-Slot Nuts are also available -- to order tapped through, add a 'T' after the above part No.'s (ex: 41412T)

NOTE: Tapped Through is not available for Part
No.'s 41426 to -32 and 61412-13.
• Many sizes conform to TCMAI standards
• Special sizes quoted upon request

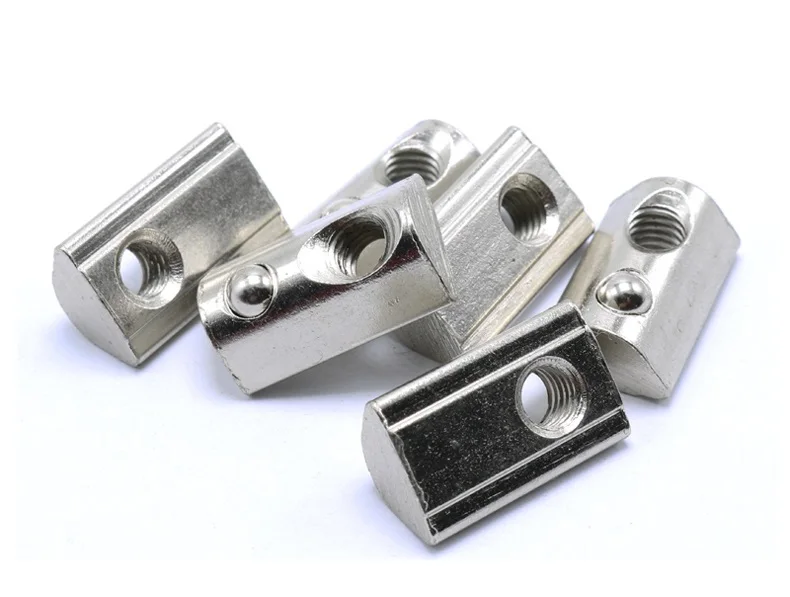

M6 T Slot Nut Dimensions

Buy Bosch Rexroth Strut Profile T-Slot Nut, M6 Thread strut profile 30 mm, Groove Size 8mm or other Connecting Components online from RS for next day delivery on your order plus great service and a great price from the largest electronics components. Browse T-Slot Nuts Metric in the TE-CO catalog including Item #,Slot Size (B),Total Height (C),D,Total Length (E),Total Width (F),Thread Size,List Price 800.543.4071 Show Menu.

Slot

• Dimensions in Metric

*T-Slot Nuts are undersized to fit machine table slot
**English T-Slot Nut will fit this size metric machine T-Slot

Item #Slot Size (B)Total Height (C)DTotal Length (E)Total Width (F)Thread Size
TE-614010.313 in8.00 mm10.00 mm6.00 mm14.00 mm19.00 mmM6x1
TE-614020.438 in10.00 mm11.00 mm6.00 mm16.00 mm22.00 mmM6x1
TE-614030.438 in10.00 mm11.00 mm6.00 mm16.00 mm22.00 mmM8x1.25
TE-614040.500 in12.00 mm13.00 mm7.00 mm19.00 mm22.00 mmM10x1.5
TE-614050.563 in14.00 mm16.00 mm9.00 mm22.00 mm29.00 mmM10x1.5
TE-614060.563 in14.00 mm16.00 mm9.00 mm22.00 mm29.00 mmM12x1.75
TE-614070.625 in16.00 mm16.00 mm9.00 mm25.00 mm29.00 mmM12x1.75
TE-614080.688 in17.00 mm19.00 mm11.00 mm29.00 mm32.00 mmM12x1.75
TE-614090.750 in18.00 mm19.00 mm11.00 mm29.00 mm32.00 mmM16x2
TE-614100.813 in20.00 mm25.00 mm14.00 mm32.00 mm38.00 mmM16x2
TE-614110.875 in22.00 mm25.00 mm14.00 mm35.00 mm38.00 mmM20x2.5
TE-614121.063 in27.00 mm29.00 mm18.00 mm41.00 mm51.00 mmM24x3
TE-614131.313 in33.00 mm32.00 mm24.00 mm51.00 mm51.00 mmM24x3
TE-614140.750 in18.00 mm19.00 mm11.00 mm29.00 mm32.00 mmM12x1.75
M6 T Slot Nut Dimensions

servicing the Canadian provinces and territories of Newfoundland, NF, NL, Nova Scotia, NS, New Brunswick, NB, Prince Edward Island, PEI, PE, Quebec, PQ, QC, Ontario, ON, Manitoba, MB, Saskatchewan, SK, Alberta, AB, British Columbia, BC, Northwest Territories, NT, Nunavut, NU, Yukon, YT, servicing Canadian cities, Toronto, Mississauga, Scarborough, Laval , Montreal, Montréal, Vancouver, Ottawa, Gatineau, Calgary, Edmonton, Québec City, Winnipeg, Hamilton, Kitchener, Cambridge, Waterloo, London, St. Catharines , Niagara, Halifax, Oshawa, Victoria, Windsor, Saskatoon, Regina, Sherbrooke, St. John's, Barrie, Kelowna, Abbotsford, Mission, Sudbury Kingston, Saguenay, Trois-Rivieres, Trois Rivieres, Trois-Rivières, Guelph, Moncton, Brantford, Saint John, Thunder Bay, Peterborough, Ajax, Aurora, Brampton, Brock, Burlington, Caledon, Clarington, Durham Region, Oshawa, Pickering, Whitby, Halton Hills, Milton, Oakville, Mississauga, New market, Richmond Hill, Vaughn, Orangeville, servicing US cities, New York, Los Angeles, Chicago, Houston, Philadelphia, Phoenix, San Antonio, San Diego, Dallas, San Jose, Austin, Jacksonville, San Francisco, Indianapolis, Columbus, Fort Worth, Charlotte, Seattle, Denver, El Paso, Detroit, Washington, Boston, Memphis, Nashville, Portland, Oklahoma City, Las Vegas, Baltimore, Louisville, Milwaukee, Albuquerque, Tucson, Fresno, Sacramento, Kansas City, Long Beach, Mesa, Raleigh, Omaha, Miami, Oakland, Minneapolis, Tulsa, Wichita, New Orleans, Arlington, Cleveland, Bakersfield, Tampa, Aurora, Honolulu, Anaheim, Santa Ana, Corpus Christi, Riverside, St. Louis, Lexington, Stockton, Pittsburgh, Saint Paul, Anchorage, Cincinnati, Henderson, Greensboro, Plano, Newark, Toledo, Lincoln, Orlando, Chula Vista, Jersey City, Chandler, Fort Wayne, Buffalo, Durham, St. Petersburg, Irvine, Laredo, Lubbock, Madison, Gilbert, Norfolk, Reno, Winston Salem, Glendale, Hialeah, Garland, Scottsdale, Chesapeake, North Las Vegas, Fremont, Baton Rouge, Richmond, Boise, San Bernardino, Spokane, Birmingham, Modesto, Des Moines, Rochester, Tacoma, Fontana, Oxnard, Moreno Valley, Fayetteville, Huntington Beach, Yonkers, Glendale, Aurora, Montgomery, Columbus, Amarillo, Little Rock, Akron, Shreveport, Augusta, Grand Rapids, Mobile, Salt Lake City, Huntsville, Tallahassee, Grand Prairie, Overland Park, Knoxville, Worcester, Brownsville, Newport News, Santa Clarita, Port St. Lucie, Providence, Fort Lauderdale, Chattanooga, Tempe, Oceanside, Garden Grove, Rancho Cucamonga, Cape Coral, Santa Rosa, Vancouver, Sioux Falls, Peoria, Ontario, Jackson, Elk Grove, Springfield, Pembroke Pines, Salem, Corona, Eugene, McKinney, Fort Collins, Lancaster, Cary, Palmdale, Hayward, Salinas, Frisco, Springfield, Pasadena, Macon, Alexandria, Pomona, Lakewood, Sunnyvale, Escondido, Kansas City, Hollywood, Clarksville, Torrance, Rockford, Joliet, Paterson, Bridgeport, Naperville, Savannah, Mesquite, Syracuse, Pasadena, Orange, Fullerton, Killeen, Dayton, McAllen, Bellevue, Miramar, Hampton, West Valley City, Warren, Olathe, Columbia, Thornton, Carrollton, Midland, Charleston, Waco and the states of Alabama, AL, Alaska, AK, Arizona, AZ, Arkansas, AR, California, CA, Colorado, CO, Connecticut, CT, Delaware, DE, District of Columbia, DC, Florida, FL, Georgia, GA, Hawaii, HI, Idaho, ID, Illinois, IL, Indiana, IN, Iowa, IA, Kansas, KS, Kentucky, KY, Louisiana, LA, Maine, ME, Maryland, MD, Massachusetts, MA, Michigan, MI, Minnesota, MN, Mississippi, MS, Missouri, MO, Montana, MT, Nebraska, NE, Nevada, NV, New Hampshire, NH, New Jersey, NJ, New Mexico, NM, New York, NY, North Carolina, NC, North Dakota, ND, Ohio, OH, Oklahoma, OK, Oregon, OR, Pennsylvania, PA, Rhode Island, RI, South Carolina, SC, South Dakota, SD, Tennessee, TN, Texas, TX, Utah, UT, Vermont, VT, Virginia, VA, Washington, WA, West Virginia, WV, Wisconsin, WI, Wyoming, WY We can ship to Afghanistan , Aland Islands , Albania , Algeria , American Samoa , AS, Andorra , Angola , Anguilla , Antigua and Barbuda , Argentina , Armenia , Aruba , Australia , Austria , Azerbaijan , Azores , Bahamas , Bahrain , Bangladesh , Barbados , Belarus , Belgium , Belize , Benin , Bermuda , Bhutan , Bolivia , Bonaire , Bosnia , Botswana , Brazil , British Virgin Isles , Brunei , Bulgaria , Burkina Faso , Burundi , Cambodia , Cameroon , Canada , Canary Islands , Cape Verde , Cayman Islands , Central African Republic , Chad , Chile , China , Colombia , Comoros , Congo , Cook Islands , Costa Rica , Croatia , Curacao , Cyprus , Czech Republic , Democratic Republic of Congo , Denmark , Djibouti , Dominica , Dominican Republic , Ecuador , Egypt , El Salvador , England , Equatorial Guinea , Eritrea , Estonia , Ethiopia , Faeroe Islands , Fiji , Finland , France , French Guiana , French Polynesia , Gabon , Gambia , Georgia , Germany , Ghana , Gibraltar , Greece , Greenland , Grenada , Guadeloupe , Guam , GU, Guatemala , Guernsey , Guinea , Guinea-Bissau , Guyana , Haiti , Holland , Honduras , Hong Kong , Hungary , Iceland , India , Indonesia , Iraq , Ireland , Israel , Italy , Ivory Coast , Jamaica , Japan , Jersey , Jordan , Kazakhstan , Kenya , Kiribati , Kosrae , Kuwait , Kyrgyzstan , Laos , Latvia , Lebanon , Lesotho , Liberia , Libya , Liechtenstein , Lithuania , Luxembourg , Macau , Macedonia (Fyrom) , Madagascar , Madeira , Malawi , Malaysia , Maldives , Mali , Malta , Marshall Islands , MH, Martinique , Mauritania , Mauritius , Mayotte , Mexico , Micronesia , Moldova , Monaco , Mongolia , Montenegro , Montserrat , Morocco , Mozambique , N. Mariana Islands , Namibia , Nepal , Netherlands , Netherlands Antilles , New Caledonia , New Zealand , Nicaragua , Niger , Nigeria , Norfolk Island , Northern Ireland , Norway , Oman , Pakistan , Palau , PW, Panama , Papua New Guinea , Paraguay , Peru , Philippines , Poland , Ponape , Portugal , Puerto Rico , PR, Qatar , Reunion , Romania , Rota , Russia , Rwanda , Saba , Saipan , San Marino , Saudi Arabia , Scotland , Senegal , Serbia , Seychelles , Sierra Leone , Singapore , Slovakia , Slovenia , Solomon Islands , South Africa , South Korea , Spain , Sri Lanka , St. Barthelemy , St. Christopher , St. Croix , St. Eustatius , St. John , St. Kitts and Nevis , St. Lucia , St. Maarten , St. Martin , St. Thomas , St. Vincent/Grenadines , Suriname , Swaziland , Sweden , Switzerland , Syria , Tahiti , Taiwan , Tajikistan , Tanzania , Thailand , Timor Leste , Tinian , Togo , Tonga , Tortola , Trinidad and Tobago , Truk , Tunisia , Turkey , Turkmenistan , Turks and Caicos Islands , Tuvalu , Uganda , Ukraine , Union Island , United Arab Emirates , United Kingdom , United States , Uruguay, US Virgin Islands , VI, Uzbekistan , Vanatu , Vatican City State , Venezuela , Vietnam , Virgin Gorda , Wales , Wallia and Futuna Islands , Western Samoa , Yap , Yemen , Zambia , Zimbabwe
we try to ship to the world largest cities Tokyo,Japan, Seoul, South Korea, Mexico City, Mexico , New York City, USA , Mumbai, India , Jakarta, Indonesia , Sáo Paulo, Brazil, Delhi, India , Osaka/Kobe, Japan , Shanghai, China , Manila, Philippines ,Los Angeles, USA ,Calcutta, India , Moscow, Russian Fed., Cairo, Egypt, Lagos, Nigeria, Buenos Aires, Argentina , London, United Kingdom , Beijing, China , Karachi, Pakistan , Dhaka, Bangladesh , Rio de Janeiro, Brazil ,Tianjin, China , Paris, France , Istanbul, Turkey , Lima, Peru , Tehrãn, Iran, Bangkok, Thailand , Chicago, USA , Bogotá, Colombia , Hyderabad, India , Chennai, India , Essen, Germany , Ho Chi Minh City, Vietnam , Hangzhou, China , Hong Kong, China , Lahore, Pakistan , Shenyang, China , Changchun, China , Bangalore, India , Harbin, China , Chengdu, China , Santiago, Chile ,Guangzhou, China , St. Petersburg, Russian Fed , Kinshasa, DRC , Baghdãd, Iraq , Jinan, China , Houston, USA , Toronto, Canada, Yangon, Myanmar (Burma), Alger, Algeria Philadelphia, USA, Qingdao, China , Milano, Italy , Pusan, South Korea, Belo Horizonte, Brazil, Almadabad, India , Madrid, Spain , San Francisco, USA, Alexandria, Egypt , Washington DC, USA , Wuhan, China , Dallas, USA , Guadalajara, Mexico, Chongging, China , Medellin, Colombia, Detroit, USA , Handan, China , Frankfurt, Germany , Porto Alegre, Brazil , Hanoi, Vietnam , Sydney, Australia, Santo Domingo, Dom. Rep., Singapore, Singapore , Casablanca, Morocco , Katowice, Poland , Pune, India , Bangdung, Indonesia, Monterrey, Mexico ,Montréal, Canada , Nagoya, Japan , Nanjing, China , Abidjan, Côte d'Ivoire, Xi'an, China , Berlin, Germany , Riyadh, Saudi Arabia, Recife, Brazil , Dusseldorf, Germany, Ankara, Turkey , Melbourne, Australia, Salvador, Brazil , Dalian, China , Caracas, Venezuela, Adis Abeba, Ethiopia, Athina, Greece, Cape Town, South Africa, Koln, Germany , Maputo, Mozambique, Napoli, Italy

M6 T Slot Nut Dimensions Chart

Tool

M6 T Slot Nut Dimensions Tool

  • Metric T-Slot Nut: M6 x 1.0 Thread x 10 Table Slot - 61402 from Te-Co, Inc. Product Information. Black Oxide Finish. The last thread is incomplete on T-Slot Nuts to prevent the stud from turning through the bottom of the nut. Many sizes conform to TCMAI standards. Special sizes quoted upon request.
  • In many finishes and sizes, t-bolts are available in special lengths and sizes to fit machine table slots.
